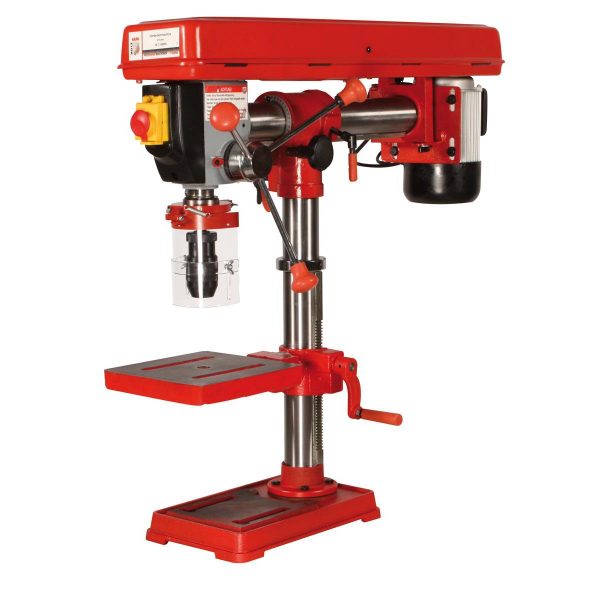

SB3116RMN_230Vdrill press radial arm adjustment
highlights
- features solid, polished base with T-nuts
- aluminum motor according IP54
- torsion-resistant, solid and polished steel column
- the worktable is tiltable from-45° to +45° and rotates 360° around table center and column
- spindle protection cover
- adjustable drill depth stop with scale for accurate drill depth control
included in delivery: automatic chuck 1-16mm, B16
technical details
motor data
motor power s1 in W
600
motor power s6 in W
900
voltage
230V 400V
measurements
max. height in mm
1620
outreach in mm
430
table size in mm
Ø300
total dimensions in mm
320x360x910
milling and drilling
spindle stroke in mm
80
base in mm
456×280
max. drilling performance in mm
16
milling spindle speed in min-1
(5) 500-2500
milling adapter
MK2 / MT2
distance spindle-base in mm
1315
max. distance spindle-table in mm
825
weight
gross weight in kg
44
net weight in kg
40
packaging
length in mm
910
width in mm
360
height in mm
320
