sb4116hm

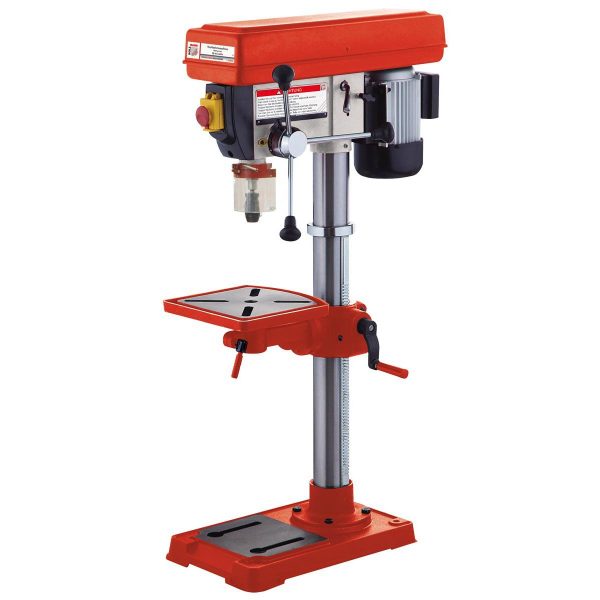

HOLZMANN SB4116HM

SB4116HM_230V  400V drill press

highlights

  • features solid, polished base with T-nuts
  • aluminum motor according IP54
  • torsion-resistant, solid and polished steel column
  • the worktable is tiltable from-45° to +45° and rotates 360° around table center and column
  • spindle protection cover
  • adjustable drill depth stop with scale for accurate drill depth control

included in delivery: automatic chuck 1-16mm, B16

technical details

motor data
motor power s1 in W
400
motor power s6 in W
600
voltage
230V
measurements
max. height in mm
990
outreach in mm
165
table size in mm
254×254
total dimensions in mm
550x370x254
milling and drilling
spindle stroke in mm
80
base in mm
456×280
max. drilling performance in mm
16
milling spindle speed in min-1
(12) 180-2740
milling adapter
MK2 / MT2
distance spindle-base in mm
630
max. distance spindle-table in mm
430
weight
gross weight in kg
52
net weight in kg
50
packaging
length in mm
895
width in mm
490
height in mm
290
