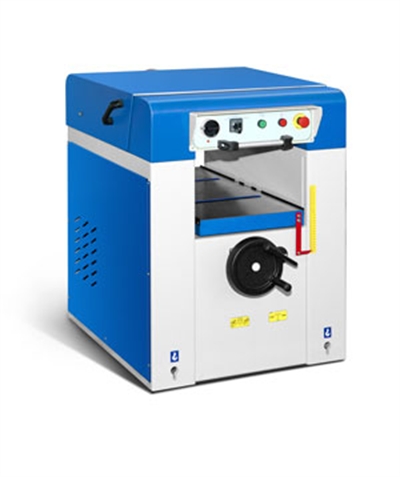

showimage (2)

NIKMANN DMS41

Working table dimensions, mm 398 x 800
Max. depth of cut, mm 4
Depth of detail, min/max, mm. 4 – 225
Feeding speed, m/min 6 / 12
Cutter block diameter, mm Ø 100
Number of the cutters 4
Categories: ,

DMS 41 Biezumēvele





Tehniskie dati

DMS 41
Galda izmēri, mm 398 x 800
Max skaidas biezums , mm 4
ēvelēšanas augstums, min/max, mm. 4 – 225
Padeves ātrums, m/min 6 / 12
Varpstas diametr, mm Ø 100
Nažu skaits 4
Apgriezieni, min-1 4500
Motoru skaits 2
Jauda, kW (HP) 4.0 (5.5)
Padeves motors, kW (HP) 0.8/1.1 (1.1/1.5)
Skaidu nosūcēja izeja, mm Ø 160
Svars, kg 425



OPTIONS

Motor power, kW (HP) 5.0 (7.5)
Digital read out for the working table position
